Home / Products / Cameras / LILIN Z6R8952X3, 5 MP AI compact motorised bullet
SKU: Z6R8952X3
Works with EdgeBox5 MP2.8 to 12 mm motorisedIR 35 mIP67, IK10

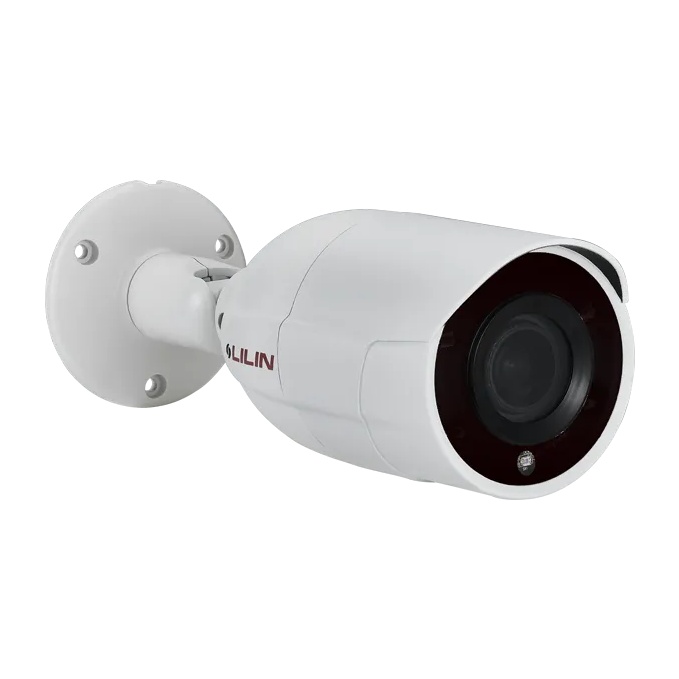

Main View

Certified third-party product


SERIES-

LILIN Z6 AI Series Bullet

LILIN Z6R8952X3, 5 MP AI compact motorised bullet

LILIN Z6 series compact bullet. 5 MP (2880 x 1616) at 30 fps on a 1/2.7″ CMOS sensor, 2.8 to 12 mm motorised autofocus lens (horizontal view 102.3° to 36.9°), HDR up to 140 dB, defog and 850 nm IR up to 35 m. Built-in AI EdgeFence detects people and vehicles with tripwire, prohibited zone, dwell, density and missing-object rules. Two-way audio, alarm in and out, PoE. IP67 and IK10 aluminium housing, 575 g. Made in Taiwan.

In stock, Pune hub Dispatches within 24 hours

₹35,500.00

incl. GST, hardware, one-time
Includes 18% GST. Input tax credit available to GST-registered buyers.
Ordering 20 or more, or for a government or PSU tender? Request a project quotation with Net 30 terms for registered integrators.
3-year warranty, advance replacement in year one
GST tax invoice at checkout
Pan-India RMA
Free insured shipping over Rs 25,000
Engineering data

Specifications

OPTICS AND SENSOR
Sensor
1/2.7 inch CMOS, 5 MP, progressive scan
Resolution and frame rate
5 MP (2880 x 1616) @30fps
Lens
2.8 to 12 mm motorised zoom and focus, F1.6 to F2.8
Field of view
HFOV 102.3° to 36.9°, VFOV 53.2° to 20.6°, DFOV 122.7° to 42.1°
Minimum illumination
0.09 lux colour (F1.6); 0.02 lux B/W; 0 lux with IR
IR range
35 m (850 nm)
Dynamic range
HDR up to 140 dB; 2D WDR; defog
VIDEO AND ENCODING
Compression
H.265, H.264, MJPEG
Streams
3 streams; simultaneous H.265 and H.264; 5 MP @30fps (60 Hz) or 25fps (50 Hz), normal and HDR
Bitrate
128 kbps to 12 Mbps (VBR/CBR)
Protocols
IPv4, TCP, UDP, HTTP, HTTPS, RTSP, RTP, DHCP, PPPoE, DDNS, FTP, SMTP, NTP, QoS, SAMBA/CIFS; ONVIF S, T, G, M
AI PROCESSOR
NPU
LILIN AI EdgeFence on camera (person and vehicle, 18 objects per frame)
Concurrent models
AI EdgeFence rules on camera; IndoAI models via EdgeBox
On-camera storage
microSD up to 128 GB (cards up to 1 TB on LILIN compatibility list), NAS (SAMBA/CIFS)
NETWORK AND POWER
Power
12V DC; PoE (802.3af)
Consumption
8.5W (12V DC); 10W (PoE)
PHYSICAL AND ENVIRONMENT
Operating temperature
-30°C to +50°C
Dimensions
75 x 75 x 206 mm
Weight
575 grams
Certifications
CE, FCC, UKCA (EMI Class A)
