SKU: Z7R6482X3-P

Works with EdgeBox8 MP 4K2.8 to 12 mm motorisedIR 30 mIP67, IK10

Certified third-party product

SERIES-

LILIN Z7 AI Series Dome

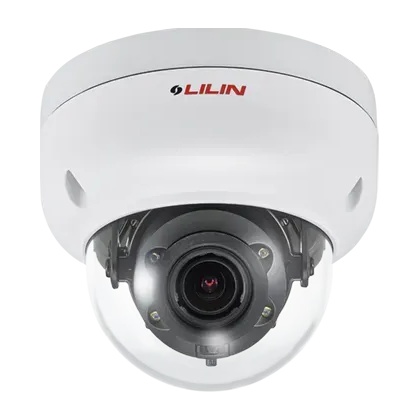

LILIN Z7R6482X3-P, 4K AI motorised dome

LILIN Z7 series vandal-resistant dome. 8 MP (3840 x 2160) at 30 fps on a 1/2.8″ Starvis sensor, 2.8 to 12 mm motorised lens with P-iris and one-push autofocus (horizontal view 108° to 31.5°), HDR up to 140 dB and 850 nm IR up to 30 m. 4 streams, two-way audio, alarm in and out, edge AI with LILIN licence, PoE. IP67 and IK10 aluminium housing rated from -40°C. For lobbies, banks, malls and offices. Made in Taiwan.

In stock, Pune hub Dispatches within 24 hours

₹46,500.00

incl. GST, hardware, one-time

Includes 18% GST. Input tax credit available to GST-registered buyers.

Ordering 20 or more, or for a government or PSU tender? Request a project quotation with Net 30 terms for registered integrators.

3-year warranty, advance replacement in year one

GST tax invoice at checkout

Pan-India RMA

Free insured shipping over Rs 25,000

Engineering data

Specifications

OPTICS AND SENSOR

Sensor

1/2.8 inch Starvis CMOS, 8 MP, progressive scan

Resolution and frame rate

8 MP (3840 x 2160) @30fps

Lens

2.8 to 12 mm motorised zoom and focus, P-iris, F1.6 to F3.3

Field of view

HFOV 108° to 31.5°, VFOV 56.3° to 18°, DFOV 130.8° to 36.7°

Minimum illumination

0.04 lux colour (F1.6); 0.008 lux B/W; 0 lux with IR

IR range

30 m (850 nm)

Dynamic range

HDR up to 140 dB

VIDEO AND ENCODING

Compression

H.265, H.264, MJPEG

Streams

4 streams; simultaneous H.265 and H.264; 4K @30fps (60 Hz) or 25fps (50 Hz), normal and HDR

Bitrate

128 kbps to 12 Mbps (VBR/CBR)

Protocols

IPv4, TCP, UDP, HTTP, HTTPS, RTSP, RTP, DHCP, PPPoE, DDNS, FTP, SMTP, NTP, QoS, SAMBA/CIFS; ONVIF S, T, G, M

AI PROCESSOR

NPU

Edge AI processor; LILIN AI analytics with purchased licence

Concurrent models

LILIN on-camera analytics (licence); IndoAI models via EdgeBox

On-camera storage

microSD up to 128 GB (cards up to 1 TB on LILIN compatibility list), NAS (SAMBA/CIFS)

NETWORK AND POWER

Power

12V DC; PoE (802.3af)

Consumption

9.5W (12V DC); 10.6W (PoE)

PHYSICAL AND ENVIRONMENT

Operating temperature

-40°C to +50°C

Dimensions

Φ120 x 106 mm

Weight

720 grams

Certifications

CE, FCC, UKCA (EMI Class A)

Statutory disclosures, Legal Metrology and BIS

Origin, maker and support

Country of originIndia. Designed and assembled in Pune, Maharashtra.

Manufacturer & PackerMerit LILIN (Taiwan). Sold in India by IndoAI Technologies Pvt Ltd.

CIN U72200MH2021PTC000000
GSTIN 27AAACI0000A1Z5

Consumer support & grievance1800 000 0000, care@indo.ai

Mon to Sat, 9 am to 7 pm IST

Certifications & IDsBIS R-41009823
