SKU: Z7R8182X3-P

Works with EdgeBox8 MP 4K2.8 to 12 mm motorisedIR 55 mIP68, IK10

Certified third-party product

SERIES-

LILIN Z7 AI Series Bullet

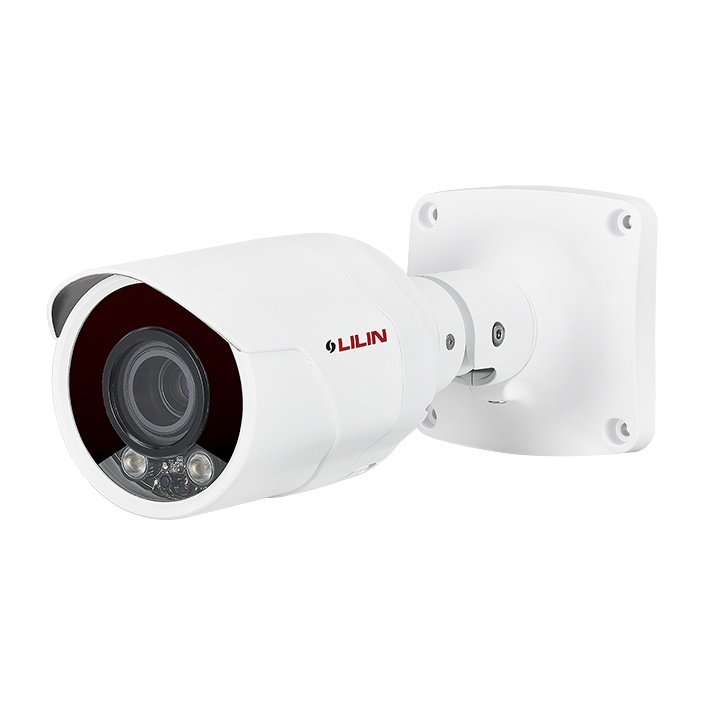

LILIN Z7R8182X3-P, 4K AI motorised bullet

LILIN Z7 series flagship bullet camera. 8 MP (3840 x 2160) at 30 fps on a 1/2.8″ CMOS sensor, 2.8 to 12 mm motorised lens with P-iris and one-push autofocus, HDR up to 140 dB, 850 nm IR plus white LED up to 55 m. Quad-core edge AI processor (LILIN AI analytics with licence), 4 streams, two-way audio, alarm in and out, IP68 and IK10 aluminium housing rated from -40°C. Made in Taiwan.

In stock, Pune hub Dispatches within 24 hours

₹48,500.00

incl. GST, hardware, one-time

Includes 18% GST. Input tax credit available to GST-registered buyers.

Ordering 20 or more, or for a government or PSU tender? Request a project quotation with Net 30 terms for registered integrators.

3-year warranty, advance replacement in year one

GST tax invoice at checkout

Pan-India RMA

Free insured shipping over Rs 25,000

Engineering data

Specifications

OPTICS AND SENSOR

Sensor

1/2.8 inch CMOS (Starvis), 8 MP, progressive scan

Resolution and frame rate

8 MP (3840 x 2160) @30fps

Lens

2.8 to 12 mm motorised zoom and focus, P-iris, F1.6 to F3.3

Field of view

HFOV 108° to 31.5°, VFOV 56.3° to 18°, DFOV 130.8° to 36.7°

Minimum illumination

0.04 lux colour (F1.6); 0.008 lux B/W; 0 lux with IR

IR range

55 m (850 nm IR plus white LED)

Dynamic range

HDR up to 140 dB

VIDEO AND ENCODING

Compression

H.265, H.264, MJPEG

Streams

4 streams; simultaneous H.265 and H.264; 4K @30fps (60 Hz) or 25fps (50 Hz), normal and HDR

Bitrate

128 kbps to 12 Mbps (VBR/CBR)

Protocols

IPv4, TCP, UDP, HTTP, HTTPS, RTSP, RTP, DHCP, PPPoE, DDNS, FTP, SMTP, NTP, QoS, SAMBA/CIFS; ONVIF S, T, G, M

AI PROCESSOR

NPU

Quad-core ARM Cortex-A53 1.0 GHz, 2 GB RAM; LILIN AI analytics with purchased licence

Concurrent models

LILIN on-camera analytics (licence); IndoAI models via EdgeBox

On-camera storage

microSD up to 128 GB (cards up to 1 TB on LILIN compatibility list), NAS (SAMBA/CIFS)

NETWORK AND POWER

Power

12V DC; PoE+ (802.3at)

Consumption

13.2W (12V DC); 14W (PoE+)

PHYSICAL AND ENVIRONMENT

Operating temperature

-40°C to +50°C

Dimensions

103 x 103 x 258 mm

Weight

1120 grams

Certifications

CE, FCC, UKCA (EMI Class A)

Statutory disclosures, Legal Metrology and BIS

Origin, maker and support

Country of originIndia. Designed and assembled in Pune, Maharashtra.

Manufacturer & PackerMerit LILIN (Taiwan). Sold in India by IndoAI Technologies Pvt Ltd.

CIN U72200MH2021PTC000000
GSTIN 27AAACI0000A1Z5

Consumer support & grievance1800 000 0000, care@indo.ai

Mon to Sat, 9 am to 7 pm IST

Certifications & IDsBIS R-41009823

Advance replacement warranty

FIELD VALIDATION

Customer Reviews & Integrator Feedback

5.0

★★★★★

Based on 0 verified deployments

5 Star

4 Star

3 Star

2 Star

No integrator reviews published yet. Be the first to review this deployment.

INTEGRATOR KNOWLEDGEBASE

Frequently Asked Questions

ENGINEERING ADVISORY

● Direct Line Active

Planning a Commercial or Municipal Surveillance Deployment?

Work with an IndoAI AI Vision Engineer to review your site blueprints, optimize camera focal counts, and receive consolidated bill-of-materials pricing with institutional credit terms.

Certified third-party product

LILIN Z7R8182X3-P, 4K AI motorised bullet

Specifications

Origin, maker and support

Related products

LILIN P6R3782AE2, 4K AI fixed dome, EN50155

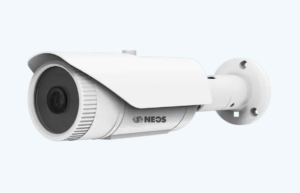

NEOS PRO-IBS25L40SDA

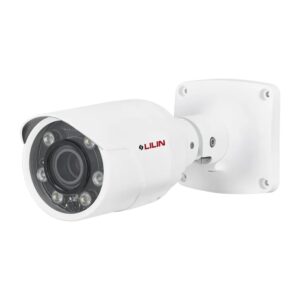

LILIN Z6R8152X3-P, 5 MP AI motorised bullet

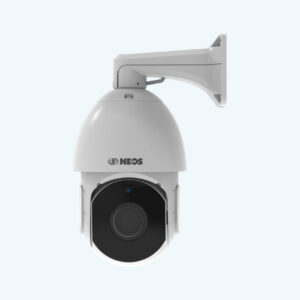

NEOS PRO-IPS25-38X
