Home / Products / Cameras / LILIN P6R8852E2, 5 MP AI fixed bullet
SKU: P6R8852E2
Works with EdgeBox5 MP2.8 mm fixedIR 35 mIP67, IK10

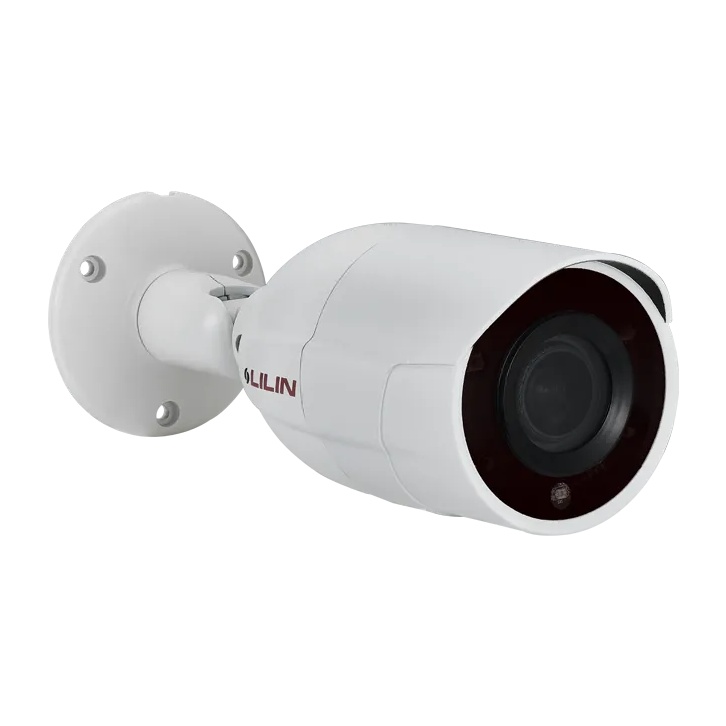

Main View

Certified third-party product


SERIES-

LILIN P6 AI Series Bullet

LILIN P6R8852E2, 5 MP AI fixed bullet

LILIN P6 series fixed bullet. 5 MP (2880 x 1616) at 30 fps on a 1/2.7″ CMOS sensor, 2.8 mm lens with a wide 110.3° horizontal view, HDR up to 140 dB and 850 nm IR up to 35 m. Built-in AI EdgeFence detects people and vehicles with tripwire, prohibited zone, dwell, density and missing-object rules. Two-way audio, alarm in and out, PoE at under 9W. IP67 and IK10 aluminium housing. Made in Taiwan.

In stock, Pune hub Dispatches within 24 hours

₹24,500.00

incl. GST, hardware, one-time
Includes 18% GST. Input tax credit available to GST-registered buyers.
Ordering 20 or more, or for a government or PSU tender? Request a project quotation with Net 30 terms for registered integrators.
3-year warranty, advance replacement in year one
GST tax invoice at checkout
Pan-India RMA
Free insured shipping over Rs 25,000
Engineering data

Specifications

OPTICS AND SENSOR
Sensor
1/2.7 inch CMOS, 5 MP, progressive scan
Resolution and frame rate
5 MP (2880 x 1616) @30fps
Lens
2.8 mm fixed, F1.6
Field of view
HFOV 110.3°, VFOV 58.2°, DFOV 131.6°
Minimum illumination
0.09 lux colour (F1.6); 0.02 lux B/W; 0 lux with IR
IR range
35 m (850 nm)
Dynamic range
HDR up to 140 dB; 2D WDR
VIDEO AND ENCODING
Compression
H.265, H.264, MJPEG
Streams
3 streams; simultaneous H.265 and H.264; 5 MP @30fps (60 Hz) or 25fps (50 Hz)
Bitrate
128 kbps to 12 Mbps (VBR/CBR)
Protocols
IPv4, TCP, UDP, HTTP, HTTPS, RTSP, RTP, DHCP, PPPoE, DDNS, FTP, SMTP, NTP, QoS, SAMBA/CIFS; ONVIF S, T, G, M
AI PROCESSOR
NPU
LILIN AI EdgeFence on camera (person and vehicle, 18 objects per frame)
Concurrent models
AI EdgeFence rules on camera; IndoAI models via EdgeBox
On-camera storage
microSD up to 128 GB (cards up to 1 TB on LILIN compatibility list), NAS (SAMBA/CIFS)
NETWORK AND POWER
Power
12V DC; PoE (802.3af)
Consumption
7.9W (12V DC); 8.9W (PoE)
PHYSICAL AND ENVIRONMENT
Operating temperature
-30°C to +50°C
Dimensions
75 x 75 x 189 mm
Weight
555 grams
Certifications
CE, FCC, UKCA (EMI Class A)
Statutory disclosures, Legal Metrology and BIS

Origin, maker and support

Country of originIndia. Designed and assembled in Pune, Maharashtra.
Manufacturer & PackerMerit LILIN (Taiwan). Sold in India by IndoAI Technologies Pvt Ltd.
CIN U72200MH2021PTC000000
GSTIN 27AAACI0000A1Z5
Consumer support & grievance1800 000 0000, care@indo.ai
Mon to Sat, 9 am to 7 pm IST
Certifications & IDsBIS R-41009823
Advance replacement warranty
